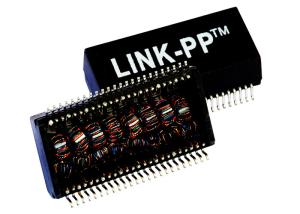

HX1259FNL POE Transformer Quad Port 40pins Surface Mounting 10/100Base-T Lan
| Pulse HX1259FNL |
| Trader Part Number | HX1259FNL | | Price Break | Unit Price | Extended Price | | 1-5 | A | - | | 10-50 | B | - | | 100-500 | C-1 | - | | 1,000-2,500 | Supportive | - | | 5,000 | Dynamic | Dynamic | | 10,000 | Dynamic | Dynamic | | 50,000 | Negotiable | Negotiable | | 100,000 | Negotiable | Negotiable | | 500,000 | Negotiable | Negotiable | |
| Made in China | SM-LP5018ANL |
| Manufacturer | LINK-PP China |
| Description | POE Transformer Quad Port |
| Documents Available | PDF/3D/Step/IGS/Price/Cross |
| Quantity Available | 20000,000 PCS or 4 weeks |
Detailed Information:
| LINK-PP LP5018ANL 100% CROSS PULSE HX1259FNL |
| LINK-PP Part Number | LP5018ANL |
| Pulse Part Number | HX1259FNL |
| Speed | 10/100BASE-T |
| Number of Ports | QUAD |
| Application - LAN | ETHERNET (PoE) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Package Height (Inches) | 0.285 |
| Package Height (mm) | 7.24 |
| Package Length (Inches) | 1.095 |
| Package Length (mm) | 27.81 |
| Package Width (Inches) | 0.600 |
| Package Width (mm) | 15.24 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
HX1259FNL POE Transformer Quad Port 40pins Surface Mounting 10/100Base-T Lan
