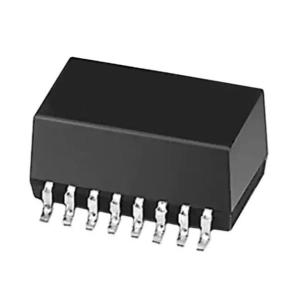

23Z356SMQNLT Lan Magnetic Transformers 16pins 1CT:1CT Receiver Surface Mount
| APPLICATION-LAN |
ETHERNET TRANSFORMER/CHOKE |
| NUMBER OF PORTS |
SINGLE |
| PACKAGE |
SMT |
| PACKAGE HEIGHT MM |
5.715 |
| PACKAGE LENGTH MM |
11.560 |
| PACKAGE WIDTH MM |
9.525 |
| POE RATING |
NON-POE |
| SPEED |
10BASE-T |
| TEMPERATURE |
0 TO 70 |
1. Turns Ratio50KHz, 0.5VElectrical Specifications(25):
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
