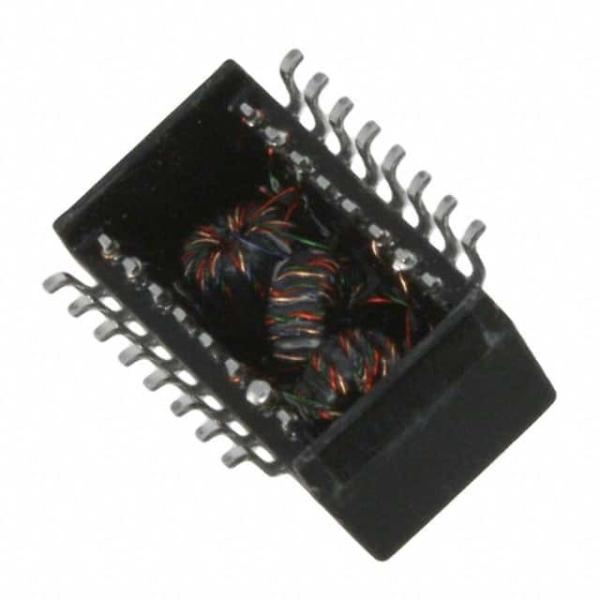

1 Port POE 10/100 Magnetic Transformer 100Mbps H2019NL

Name: 1 Port POE 10100 Magnetic Transformer 100Mbps H2019NL
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : H2019NL / H2019NLT

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Specification : H2019NL / H2019NLT

Ethernet : 10/100Mbps x1

Mounting : SMD

Number of Ports : Single

Temperature : 0℃ TO 70℃

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

1 Port POE With 10/100 Magnetic Transformer H2019NL / H2019NLT

Detailed Information:

Part Status	Active
Transformer Type	Isolation and Data Interface (Encapsulated)
Inductance	-
ET (Volt-Time)	-
Turns Ratio - Primary:Secondary	1CT:1CT
Mounting Type	Surface Mount
Size / Dimension	0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max)	0.240" (6.10mm)
Operating Temperature	0°C ~ 70°C
Weight	0.04 oz (1.14 g)

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

1 Port POE 10/100 Magnetic Transformer 100Mbps H2019NL

Competitive Price And Service

• Provide New Design For Customer Requirements

• Delivery Time:2-3 Weeks After Orders

Packing

1.Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.
2.We can do the packing according to the customer's requirement, but the price is different.
